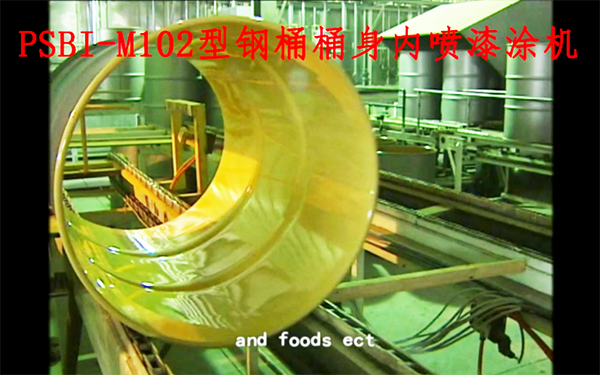

PSBI-M102型鋼桶桶身內噴涂機

PSBI-M102 Type Inner Spraying Machine for the Drum Body

1. 　　一、用途
   　　One, application

1. 　　
2. 　　1、對鋼桶內部表面進行涂裝的專用設備；
   　　1. Special device for the internal coating of the steel drums.

3. 　　2、該設備自動完成鋼桶內部的噴涂涂裝過程。
   　　2. Spray coating process for the internal of steel drums automatically, which is fast and reliable.

　　

1. 　　二、性能特點
   　　Two, characteristics
2. 　　1、同時完成兩個桶身的內部位全方位噴涂，不流掛，涂膜一致；
   　　1. It completes the internal omnibearing spraying of the two drum body simultaneously without flowing and having consistant film.
3. 　　2、安裝有2套外加持式噴涂工位，可適應多品種不同涂層材料鋼桶桶框噴涂，無需更換工裝；
   　　2. Equipped with 2 sets of outer holding spraying station, which can be adapted to the steel drums frame spraying with various coating materials without changing the tool.
4. 　　3、安裝有“文丘里”式水幕除塵裝置及其引風裝置，有效阻擋漆霧飛濺；
   　　3. Equipped with "venturi" type water curtain dust removal device and a wind guiding device, which can prevent the splashing of the paint mist effectively.
5. 　　4、采用外加持四滾輪驅動，動力裝置置于噴房兩側；
   　　4. Adopted the outer holding four rolling wheels driving device and the power device is placed at two sides of the spraying room.
6. 　　5、通過觸摸屏，對動力裝置、噴涂漆量實施智能控制，并自動完成工藝調整；
   　　5. Implement intelligent control of the power device, the paint spraying amount and complete process adjustment automaticallty through the touch screen.

　　6、主傳動鏈為封閉式工位回轉式鏈運送傳輸，運轉可靠、清理便捷；
　　6. The main transmission chain is a closed type station rotary chain transmission, the running of which is reliable and makes the cleaning convenient.

1. 　　7、設備采用高性能PLC及觸摸屏，實現設備參數數字調整，操作簡單方便快捷。
   　　7. The equipment adopts high property PLC and touch screen, which realizes the digital adjustment of the parameter of the equipments and make the operation simple and convenient.

1. 　　
2. 　　三、主要技術參數
   　　 Three, main technical parameters
