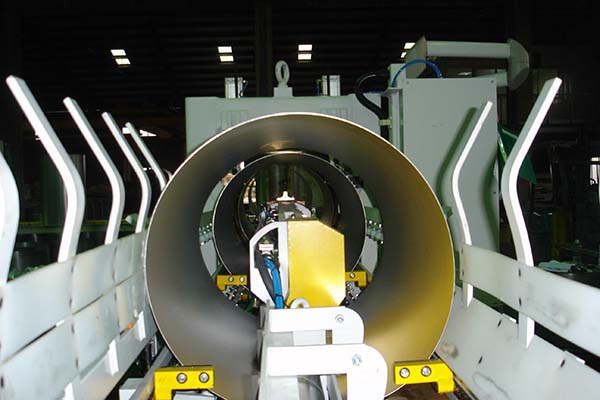

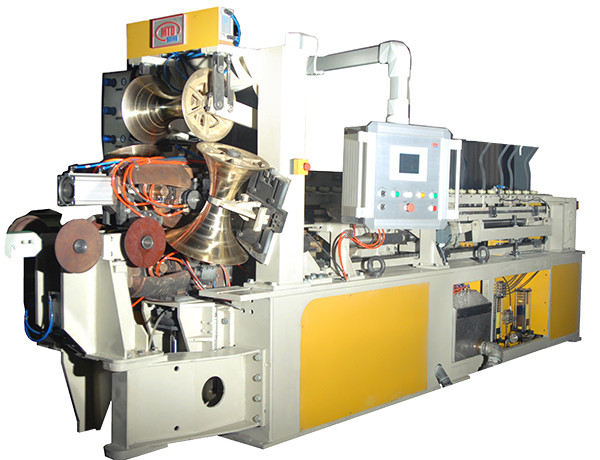

WD-M101型鋼桶高速全自動縫焊機

WD-M101 Type High Speed Fully Automatic Seaming Machine of the Steel Drums

1. 　　一、用途
   　　One, application

1. 　　
2. 　　1、將裁剪后的鋼板卷制成筒狀；
   　　1. Rolling the cutted steel sheets into cylindrical shape.
3. 　　
4. 　　2、通過傳動機構送入焊接部位焊接成桶身。
   　　2. Conveying the cylindrical shape into the welding section through transmission mechanism and weld it into the drum body.

1. 　　二、性能特點
   　　Two, characteristics

1. 　　
2. 　　1、焊縫高低壓階段控制，有效提高焊縫焊接質量；
   　　1. Controlling the High voltage and Low voltage of the welding line, which improves the welding quality of the welding line effectively.
3. 　　
4. 　　2、鋼桶焊接時的搭接量只有2mm；
   　　2. The overlapping amount of the welded steel drums is only 2mm.
5. 　　
6. 　　3、焊輪直徑起始為304mm，更換直徑為220mm，極大的節省了損耗成本；
   　　3. The diameter of the welding wheel is changed from the original 304mm into 220mm, which save the loss cost largely.
7. 　　
8. 　　4、瑞士進口高效節能的SS-1200交流逆變控制系統，焊接穩定，能源損耗少，焊流調整方便簡單，可根據需要預設多種焊接電流數值；
   　　4. The high efficieny and energy saving SS-1200 AC inverter controller system imported from Switzerland has stable welding quality and has little energy loss. The welding current can be adjusted conveniently and simply. Various welding current value can be presetted according to the requirements.
9. 　　
10. 　　5、焊接控制器及變壓器均有高溫保護裝置，確保設備的安全運行；
    　　5. Both the welding controller and transformer has high temperture protection devices, which can ensure the safety running of the equipment.
13. 　　
14. 　　6、縫焊機機身的導電部件及焊接單元附近的部件均有循環冷卻水降溫；
    　　6. The electric component of the body of the seam welding machine and the component around the welding unit has circulating cooling water to cool down the temperature.
15. 　　
16. 　　7、縫焊機卷圓部分和焊軸部分分別配置了意大利Dropsa公司生產的集中潤滑系統；
    　　7. The rolling section of the seam welding machine and the welding axis section are respectively configured with the centralized lubricating system produced by Dropsa company of Italy;
17. 　　
18. 　　8、縫焊機通過安裝在機頭部位的定徑輪（腰鼓輪），通過氣缸調整來確保鋼桶成型尺寸；
    　　8. By installing the fixed diameter wheel on the head position of the seaming machine, it can ensure the forming dimension of the steel drums through the adjustment of the cylinder.
19. 　　
20. 　　9、設備采用了高性能PLC及觸摸屏，根據實際操作經驗編寫的操作系統，操作簡單方便快捷。
    　　9.High property PLC and touch screen are adopted and the operation systems are edited according to the practical operation experience, which is easy and convenient to be operated.
21. 　　

1. 　　
2. 　　三、主要技術參數
   　　 Three, main technical parameters
