- 一、用途
One, application
-

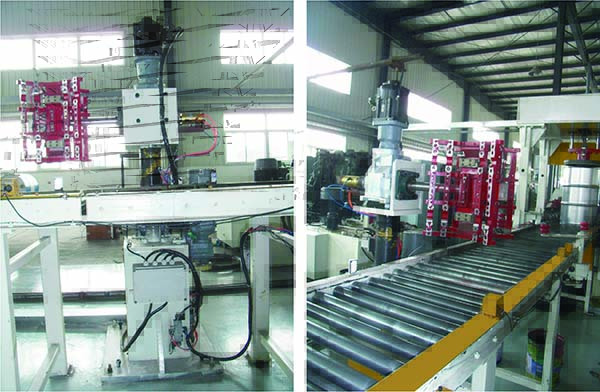

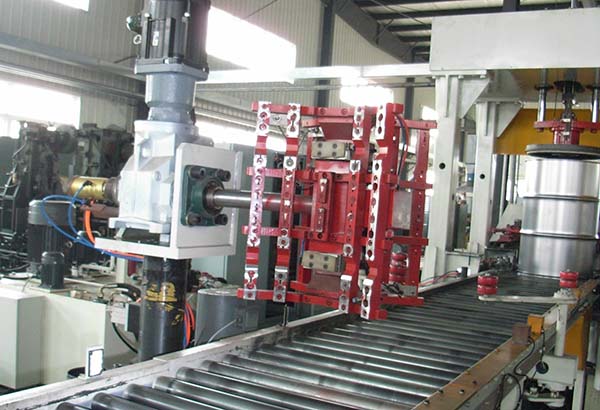

- 1、 對桶身進行180度翻轉的設備。
1. It is the equipment which can rotate the drum body with 180 degree.
- 二、性能特點
Two, characteristics
- 1、它完成桶身180度翻轉，為桶蓋、桶底卷封切換桶身位置；
1. It can make the drum body rotated 180 degree and change the position of the drum body for the Top & Bottom seaming.
- 2、直立翻轉，單電機驅動，效率高，動作少，能源消耗低；
2. It can rotate vertically and driven by single motor, which has high efficiency, less movement and low enegry consumption.
- 3、根據桶高自動調整對桶的抓取高度；
3. It can clamp the position of the drum accroding to the drum height automatically.
- 4、在無需使用翻桶機時，可進行參數選擇，設備自動完成選擇動作；
4. Under the cirmstances that the drum turner are not to be needed, the parameter can be selected and the equipment can complete the selection automaticallty.
- 5、實現立式翻轉，無需其他輔助設備，適應整體流水線需要，安裝維修方便；
5. Realizing vertically rotating without other auxiliary equipments and meet with the need of the whole assembly line, which is convenient to be installed and maintained.
6、設備采用高性能PLC及觸摸屏，實現設備參數數字調整，操作簡單方便快捷。
?。?
The equipment adopts high property PLC and touch screen, which realizes the digital adjustment of the parameter of the equipments and make the operation simple and convenient.
-
- 三、主要技術參數
Three, main technical parameters
參數設置
Parameter setting |
單位
unit |
參數值
Parameter value |
備注
Remarks |
速度
Speed |
個/分鐘
Nos per minute |
15 |
900個/小時
900 per hour |
電壓
Voltage |
V |
380 |
三相五線制
Three phase five wire system |
總功率
Total Power |
KW |
6.5 |
|
用氣量
Gas Consumption |
L/min |
0.75 |
|
適應桶高
Drum Height suitable to |
mm |
880~920 |
|
適應桶徑
Drum Diameter suitable to |
mm |
560、571 |
|
機械外形尺寸
Machine overall dimension |
mm（L*W*H） |
900 * 1500 * 2300 |
L為傳送線方向
L is the direction of the conveying line |
|
|
