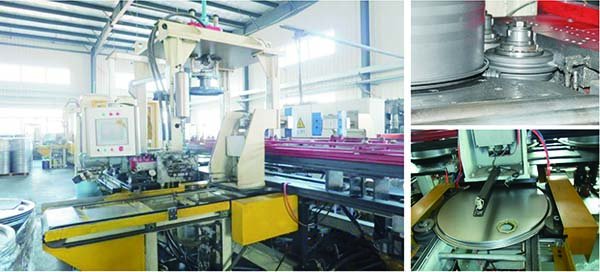

VTS-M103型自動立式桶蓋卷封機

VTS-M103 Type Automatic Vertical Drum Top Seaming Machine

1. 　　一、用途
   　　One, application

1. 　　
2. 　　1、對桶身成型后的半成品與天板（桶蓋）進行密封成型的設備；
   　　1. It is the equipment for seaming the forming semifinished products- drum body with the drum top.
3. 　　
4. 　　2、可根據需要對焊縫進行查找并對天板（桶蓋）大絲口進行定位的設備；
   　　2. It is the equipment to check the welding line and locate the flange mouth on the drum top according to the needs.
5. 　　3、設備自動完成組蓋過程，快速有效。
   　　3. The equipment complete the drum top assembling process automatically, which is fast and efficient.

1. 　　二、性能特點
   　　Two, characteristics

1. 　　
2. 　　1、它完成桶身與天板（桶蓋）卷封密封成型，并可對卷封過程進行2次注膠；
   　　1. It completes the seaming and forming of the drum body with the drum top, and can make second time glue injection for the seaming process.
3. 　　

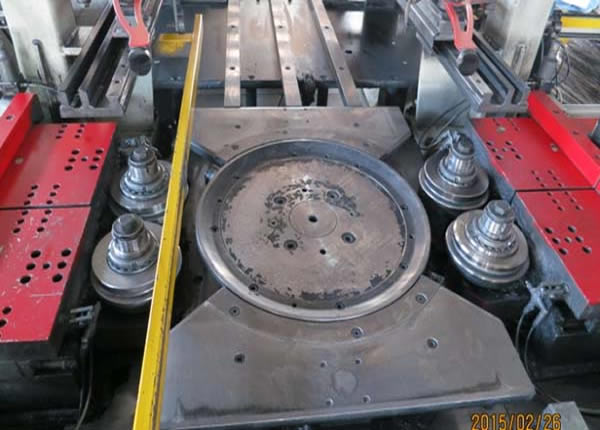

4. 　　2、安裝有4個卷封輪，形成2套卷封工位，可適應品種快速切換，無需更換卷封輪；
   　　2. Equipped with four seaming wheel and forming two sets of seaming station, which can be adapted to rapid change of varieties without changing the seaming wheel.
5. 　　
6. 　　3、通過觸摸屏，對卷封輪進給量、桶身高度、卷封工位選擇、焊縫位置等進行數字設置，并自動完成工藝調整；
   　　3. Having digital setting for the feeding amount, the height of the drum body, selection of the seaming station, the position of the welding line,ect. and adjust the process automatically through the touch screen.
7. 　　
8. 　　4、卷封輪高低位置可快速調節；
   　　4. The high and low position of the seaming wheel can be adjusted quickly.
9. 　　
10. 　　5、實現立式加工，適應整體流水線需要，安裝維修方便；
    　　5. Realizing vertical processing to meet the needs of the whole assembly line and making installation and maintenance convenient.
11. 　　6、桶身運送過程由機械手夾持運送，提高效率，穩定可靠；
    　　6. The conveying process of the drum body is clamped the mechanical hand, which is stable and improve the efficiency.
12. 　　7、卷封輪帶有冷卻裝置；
    　　7. The seaming wheel is provided with the cooling device.
13. 　　8、設備采用高性能PLC及觸摸屏，實現設備參數數字調整，操作簡單方便快捷。
    　　8. The equipment adopts high property PLC and touch screen, which realizes the digital adjustment of the parameter of the equipments and make the operation simple and convenient.
15. 　　

1. 　　
2. 　　三、主要技術參數
   　　 Three, main technical parameters
