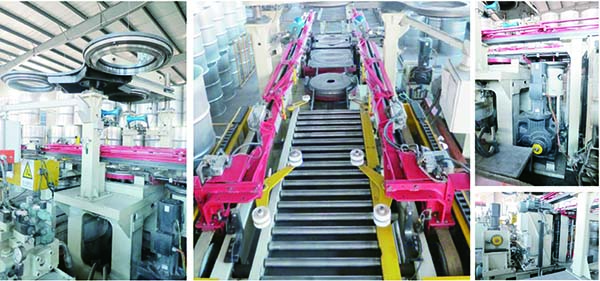

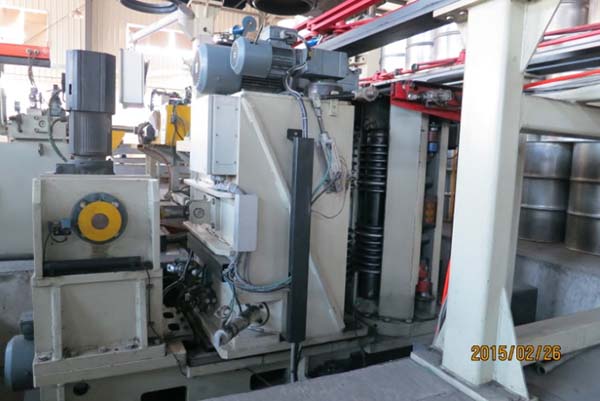

VDF-M103型自動立式桶身成型機

VDF-M103 Type Automatic Vertical Drum body Forming Machine

1. 　　一、用途
   　　One, application

1. 　　
2. 　　1、它是鋼板焊接完成后對圓形桶身進行成型的設備；
   　　1. It is the equipment for forming the welded steel sheets into the round drum body.
3. 　　
4. 　　2、實現立式快速成型，包括翻邊、脹筋、波紋的成型過程加工。
   　　2. realize vertical speed forming process, including flanging, beading, corrugation.

1. 　　二、性能特點
   　　Two, characteristics

1. 　　
2. 　　1、主要功能有：自動調整桶身高低、翻邊上磨具3個工位相互切換、脹筋高度線性調整、2-3道筋自動選擇工藝、4工位波紋輪自動切換等；
   　　1. The main functions include automatic adjustment of the height of the drum body, 3 stations changing over of flange and mould, the liner adjustment of the beading height, automatic selection of 2 or 3 beadings, and 4 stations corrugation wheels change automatically,ect.
3. 　　
4. 　　2、提高了工藝修改速度，降低了勞動強度，適應了目前小批量多品種的生產需要；
   　　2. Improve the technical changing speed and reduce the labour intensity, which is suitable for the current production requirements of small batch with mutiple kinds.
5. 　　
6. 　　3、能適應桶直徑560、571的加工，豐富了產品品種，大大提高了企業的產品競爭力；
   　　3. Be suitable for processing the steel drums with the diameter of 560mm and 571mm, which enrich the varities of the products and greatly improve products competitiveness of the enterprise;
7. 　　
8. 　　4、設備將翻邊、脹筋、壓波紋三工位合一，安裝維修方便，節省空間；
   　　4. The combination of the three stations, flanging, beading and corrguation make the installation and maintenance convenient and saving space.
9. 　　
10. 　　5、桶身運送過程由機械手夾持運送，提高效率，穩定可靠；
    　　5. The conveying process of the drum body is clamped by the mechanical hand, which is stable and improve the work efficiency.
14. 　　6、設備采用了高性能PLC及觸摸屏，實現了數字調整，操作簡單方便快捷。
    　　6. The equipment adopts high property PLC and touch screen, which realizes the digital adjustment of the parameter of the equipments and make the operation simple and convenient.
15. 　　

1. 　　
2. 　　三、主要技術參數
   　　 Three, main technical parameters
